CS 5043: HW7: Semantic Labeling

Assignment notes:

Deadline:
- Deadline: Tuesday, April 25th @11:59pm.
Hand-in procedure: submit a zip file to Gradescope
Do not submit MSWord documents.

Data Set

The Chesapeake Watershed data set is derived from satellite imagery over all of the US states that are part of the Chesapeake Bay watershed system. We are using the patches part of the data set. Each patch is a 256 x 256 image with 26 channels, in which each pixel corresponds to a 1m x 1m area of space. Some of these channels are visible light channels (RGB), while others encode surface reflectivity at different frequencies. In addition, each pixel is labeled as being one of:

0 = no class
1 = water
2 = tree canopy / forest
3 = low vegetation / field
4 = barren land
5 = impervious (other)
6 = impervious (road)

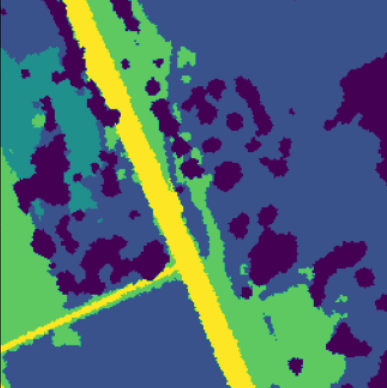

Here is an example of the RGB image of one patch and the corresponding pixel labels:

Notes:

Detailed description of the data set

Data Organization

All of the data are located on the supercomputer in: /home/fagg/datasets/radiant_earth/pa. Within this directory, there are both train and valid directories. Each of these contain directories F0 ... F9 (folds 0 to 9). Each training fold is composed of 5000 patches. Because of the size of the folds, we have provided code that produces a TF Dataset that dynamically loads the data as you need it. We will use the train directory to draw our training and validation sets from and the valid directory to draw our testing set from.

Local testing: the file chesapeake_small.zip contains the data for folds 0 and 9 (it is 6GB compressed).

Data Access

chesapeake_loader.py is provided. The key function call is:

ds_train, ds_valid, ds_test, num_classes = create_datasets(base_dir='/home/fagg/datasets/radiant_earth/pa',
                                                           fold=0,
                                                           train_filt='*[012345678]',
                                                           cache_dir=None,
                                                           repeat_train=False,
                                                           shuffle_train=None,
                                                           batch_size=8,
                                                           prefetch=2,
                                                           num_parallel_calls=4)

where:

ds_train, ds_valid, ds_test are TF Dataset objects that load and manage your data
num_classes is the number of classes that you are predicting
base_dir is the main directory for the dataset
fold is the fold to load (0 ... 9)
train_filt is a regular expression filter that specifies which file numbers to include.
- '*0' will load all numbers ending with zero (500 examples).
- '*[01234]' will load all numbers ending with 0,1,2,3 or 4.
- '*' will load all 5000 examples.
- '*[012345678]' is the largest training set you should use
cache_dir is the cache directory if there is one ('' if cache to RAM, LSCRATCH on the supercomputer)
repeat_train repeat training set indefinitely
shuffle_train size of the training set shuffle buffer
batch_size is the size of the batches produced by your dataset
prefetch is the number of batches that will be buffered
num_parallel_calls is the number of threads to use to create the Dataset

The returned Datasets will generate batches of the specified size of input/output tuples.

Inputs: floats: batch_size x 256 x 256 x 26
Outputs: int8: batch_size x 256 x 256

The Problem

Create an image-to-image translator that does semantic labeling of the images.

Details:

Your network output should be shape (examples, rows, cols, number of classes), where the sum of all class outputs for a single pixel is 1 (i.e., we are using a softmax across the last dimension of your output).
Use sparse_categorical_crossentropy as your loss function. This will properly translate between your one-output per class per pixel to the outs that have just one class label for each pixel.
Use sparse_categorical_accuracy as an evaluation metric. Because of the class imbalance, a model that predicts the majority class will have an accuracy of ~0.65
Try using a sequential-style model, as well as a full U-net model (with skip connections).

Deep Learning Experiment

For what you think is your best performing model type (and hyper-parameters), perform 5 different experiments:

Use '*[012345678]' for training (train partition). Note: when debugging, just use '*0'

The five different experiments will use folds F5 ... F9. There is no overlap between the folds.

Reporting

Figures 1a,b: model architectures from plot_model(). One figure
Figure 2: Validation accuracy as a function of training epoch. Show 10 curves.
Figures 3...7: for each model, evaluate using the test data set and generate a confusion matrix. (so, one confusion matrix per rotation)
Figure 8: scatter plot of test accuracy.
Figures 9a,b: for both models, show three interesting examples (one per row). Each row includes: Satellite image (channels 0,1,2); true labels; predicted labels.
plt.imshow can be useful here, but make sure for the label images that the label-to-color mapping is the same
Reflection
1. How do the training times compare between the two model types?
2. Describe the relative performance of the two model types.
3. Describe any qualitative differences between the outputs of the two model types.

What to Hand In

Your python code (.py) and any notebook files (.ipynb)
Figures 1-9
Your reflection

Grades

20 pts: Clean, general code for model building (including in-code documentation)
5 pts: Figure 1a,b
10 pts: Figure 2
5 pts each: Figures 3-7
10 pts: Figure 8
10 pts: Figures 9a,b
10 pts: Reflection
10 pts: Reasonable test set performance for all rotations

References

A Beginner's Guide to Deep Semantic Segmentation

Hints

Start small. Get the architecture working before throwing lots of data at it.
Write generic code.
Start early. Expect the learning process for these models to be relatively long.
